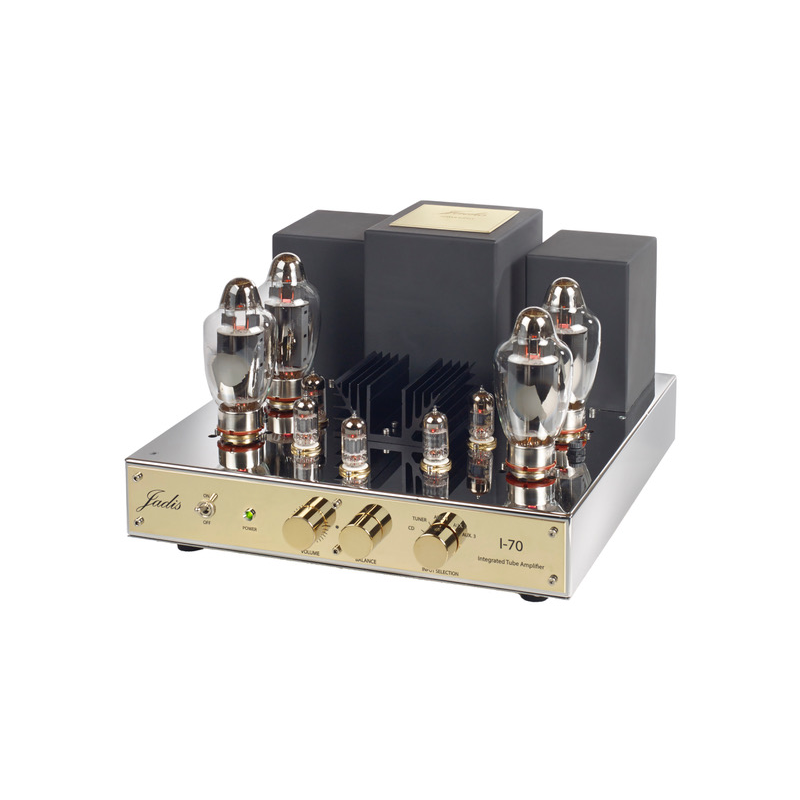

I-70 2x50 Watt Class A

For a long time now , we’ve been thinking about developing a new reference

mixing compact design  and increased performances…and KT170 tube comes,giving the starting signal of  I-70 project.

This integrated is not only  designed in the pure tradition with point to point wiring and hand made transformer it’s  the first to integrate several features from Jadis mono- block technology.

From power supply point of view, power stage has a full separated supply makes it totally independent. Driver and power stage separated  means a power stage not influenced by the other one, so 100 available.  Stabilized filament voltage eliminating inducted noise.

Huge power transformer has been designed to bring dynamic and pulse power. Due to its fully new designed output transformer I-70 works in a single push-pull ultra linear with triple load configuration and  then equipped with two KT170 per channel.

KT170 is a powerful tube but we prefer to take advantage of its feature to reduce distortion instead of simply   focusing on its power, by choosing a functioning point different than usual.
